Read Stopwatch
Reads a running stopwatch and then allows you to leave it running or pause it. |
Use this in conjunction with a Start Stopwatch action cell, which will have started or resumed the stopwatch earlier in the script. A further instance of Start Stopwatch later in the script may be used to resume the stopwatch if paused by this action cell.

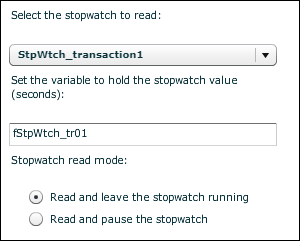

Select the stopwatch to read
Select a stopwatch.
Set the variable to hold the stopwatch value
Enter a defined float variable. This can subsequently be:
Used by a Select Case action cell to branch according to the stored value.
Used to update an event counter for display on a VIEW real-time dashboard.
Written to the CDR misc fields by an Assign Variable action cell, for use in VIEW historical reporting.
Stopwatch read mode
Select the first option take a snapshot reading of the running stopwatch without stopping it. Or, select the second option to take a reading and to pause it.
Exit point |
Taken |
[Complete] |
When cell execution completes. |
