View Your Access Points

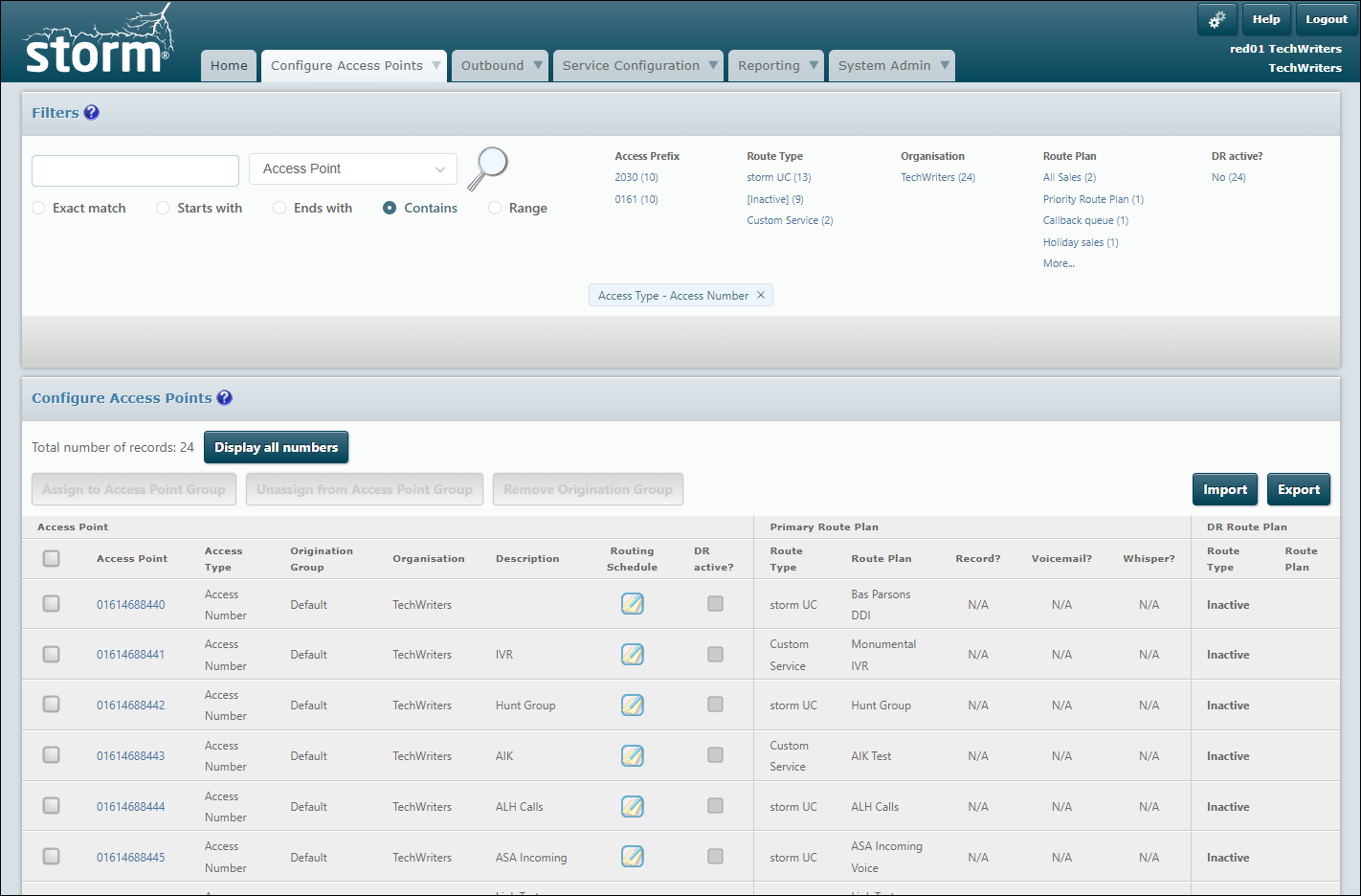

  1. From the STUDIO main screen, select Inbound > Configure Access Points.

This displays a list of access points that is filtered to display access numbers only. You can click the X next to Access Type - Access Number to remove the filter and see all access points.

The screen columns have the following meanings:

Column

Description

Access Point

The actual number, account name, email address or access point name.

Access Type

The type of access point (for example, telephone number or email address).

Origination Group

(Applies to all access points except X (formerly Twitter) and Facebook.)

The name of the origination group to which the access point is assigned or ‘Default’ if it is not assigned.

Organisation

The name of the organisation or sub-organisation that owns the access point.

Description

The descriptive name given to the access point.

Route Type

The route type. If no route type has been assigned, the column shows ‘Inactive’.

Route Plan

The name of the primary route plan assigned to the combination of access number/group and origination group shown on this line.

Routing Schedule

The Edit  button in this column allows you to configure time-based routing for the access number or access point group on this line.

Record?

(Applies to the 'Onward Route' and 'SIP Trunk' route types only.)

A toggle button indicating whether or not call recording is active on the route plan assigned to the access number.

N/A

 Active

 Inactive

Voicemail?

(Applies to the 'Onward Route' and 'SIP Trunk' route types only.)

A toggle button indicating whether or not the primary route plan assigned to the access point/group is configured to overflow to voicemail.

N/A - Not applicable for this type of route

 Active - overflows to voicemail

 Inactive - does not overflow to voicemail

Whisper?

(Applies to the 'Onward Route' and 'SIP Trunk' route types only.)

A toggle button indicating whether or not whisper prompting for the primary route plan assigned to the access point or access point group is active. A whisper prompt is an audio message played to the storm user before the call is connected and is generally used to provide relevant information about the caller.

N/A - Not applicable for this type of route

 Active - whisper prompting is on

 Inactive - whisper prompting is off

DR Active?

A toggle button indicating whether or not disaster recovery routing is in force for the access point/group.

 Active

 Inactive

DR Route Type?

The disaster recovery route type (or 'Inactive' if there isn’t one).

DR Route Plan

The name of the disaster recovery route plan assigned to the access point.

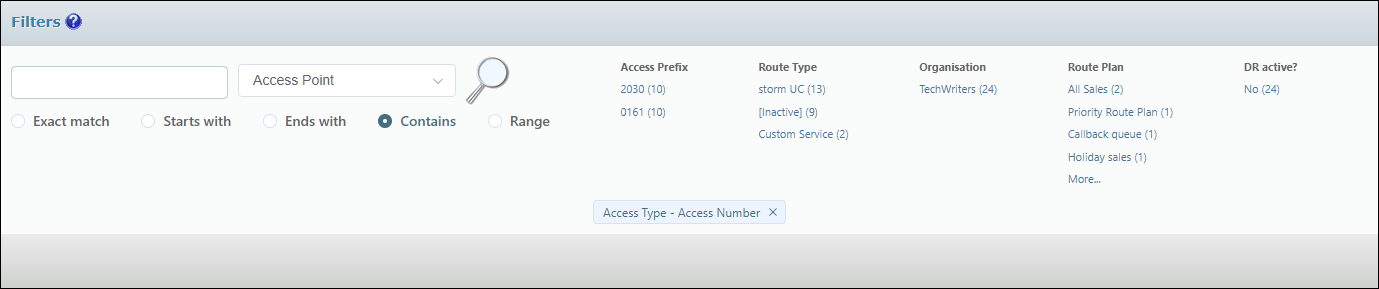

  1. If required, use the Filters panel at the top of the screen to control what is shown:

The hyperlinks on the right are pre-configured filters based on your current access point configuration. Use the search controls on the left to define custom filters. You can apply any combination of pre-configured and custom filters. Filters that you apply appear at the bottom of the panel. Click X next to an applied filter to remove it.
