Runs a subsidiary FLOW service.
Run FLOW Service
|
|
Runs a subsidiary FLOW service. |

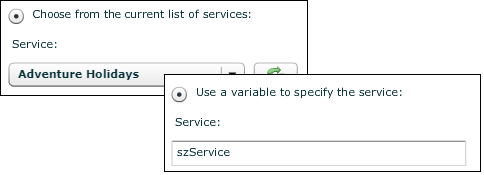

Choose from the current list of services.
Select the subsidiary service to run (by choosing from a list or entering a string variable).
Input Variables
Use this section to build a list of variables for passing values that the subsidiary service is configured to recognise (via its Start action cell). In the Name field, enter a label for the parameter to pass (this must match the parameter in the subsidiary script); in the Value field, provide the variable to pass. Click Add to add the Name/Value pair to the list below.
Output Variables
Use this section to build a list of variables for receiving returned by the subsidiary service. In the Name field, enter a label for the parameter that is being received (this must match the parameter in the subsidiary script); In the Value field, provide the variable to store the value. Click Add to add the Name/Value pair to the list below.
|

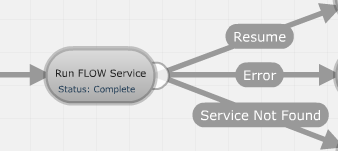

Exit point |
Taken |
|
Resume |
If the subsidiary service ran without error. |
|
Error |
If the subsidiary service encountered a run-time error. |
|
Service Not Found |
If the subsidiary service could not be found. |
