Find String

Searches for a sequence of characters in a string variable and branches accordingly.

If found, the position of the first character of the located sequence (offset) is stored for use in other string manipulation action cells (Extract String, Insert String and Insert Character).

For example, searching for the three-character sequence 'xyz' in a string 1234xyzAGSW, returns an offset value of 5.

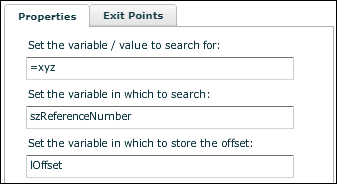

Properties

Set the variable/value to search for

Enter the sequence of characters to search for (a literal value preceded by =, or a string variable).

Set the variable in which to search

The string variable to search.

Set the variable in which to store offset

The integer variable in which to store the offset.

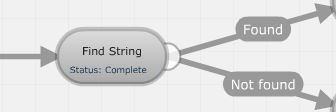

Exit points

Exit points

Taken

Found

If the character sequence was found.

Not Found

If the character sequence was not found.
