Create an Access Point Group

An access point group is a group of access points that allows you to configure routing for multiple access points in one operation rather than for each access point individually.

  1. From the STUDIO main screen, select Inbound > Access Point Groups.

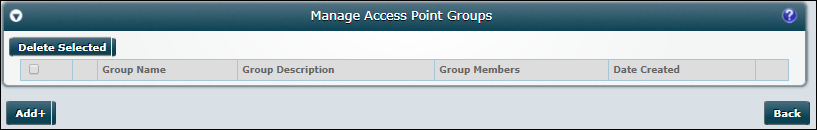

  1. Click the Add+ button:

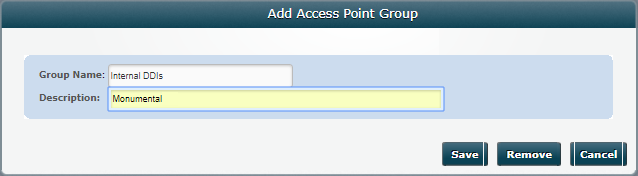

  1. In the Add Access Point Group dialog, enter a group name and description, and then click Save:

  1. From the second tab, select Configure Access Points:

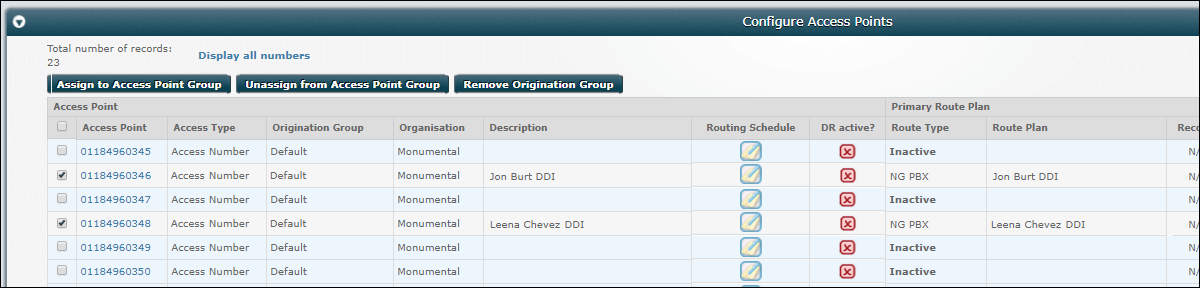

  1. On the Configure Access Points screen, select the check boxes next to the access points you want to add to the group:

  1. Click the Assign to Access Point Group button above the list and then select the target access point group:

  1. Click Save.

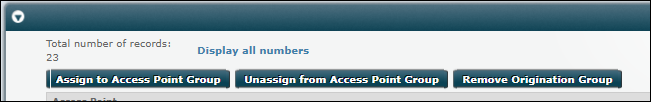

  2. To see the access point group that an access number is assigned to, click the Display all Numbers hyperlink above the list:

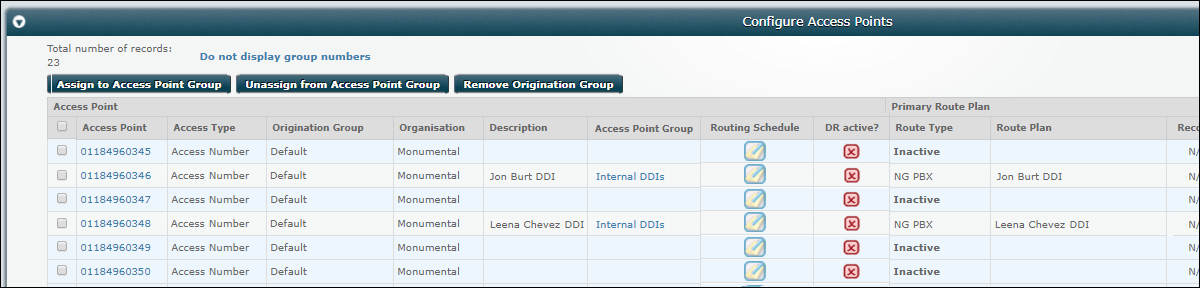

The group name is displayed in the Access Point Group column:

Assigning a route plan to a number that is a member of an access point group automatically assigns the route plan to all members in that group.

Note: an access point cannot be a member of multiple groups.

To remove an access point from a group, select the check box next to the access point and then click the Unassign from Access Point Group button above the list.
